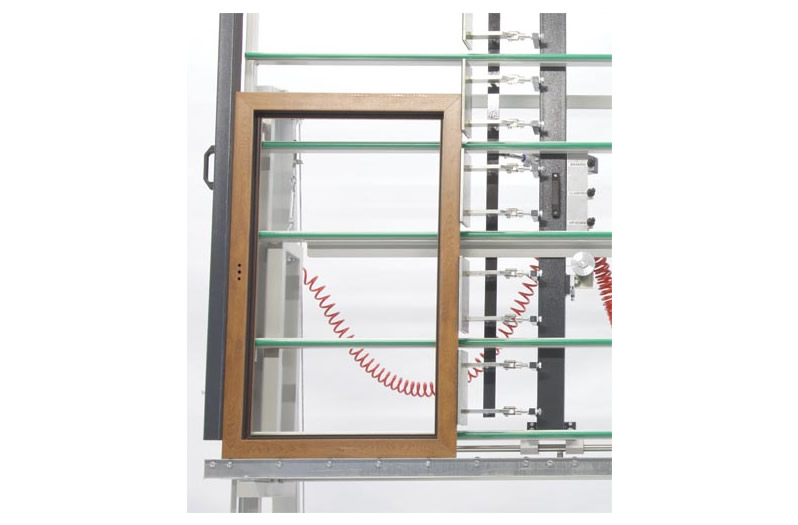

Fast assembly of windows, doors and elements.
Maintains an accurate balance by means of parallel clamping unit.
The upwards slide movement of the table eases working on the frames.
The glazed frame can be packed and then transferred effortlessly by sliding on the reels.
Max. Frame Height: 2,000 mm
Max. Frame Length: 2,360 mm
Max. Frame Weight: 120 kg.
Air pressure: 6-8 bar
Air consumption: 50 l/min.
Machine Height: 2,250 mm
Machine Length: 3,000 mm
Machine Width: 1,000 mm
Machine Weight: 410 kg
