For end milling of transom in PVC and Aluminum profiles.
Automatic feed of the milling unit.
Ability to route at varying angles up to 45° left and 30° right.

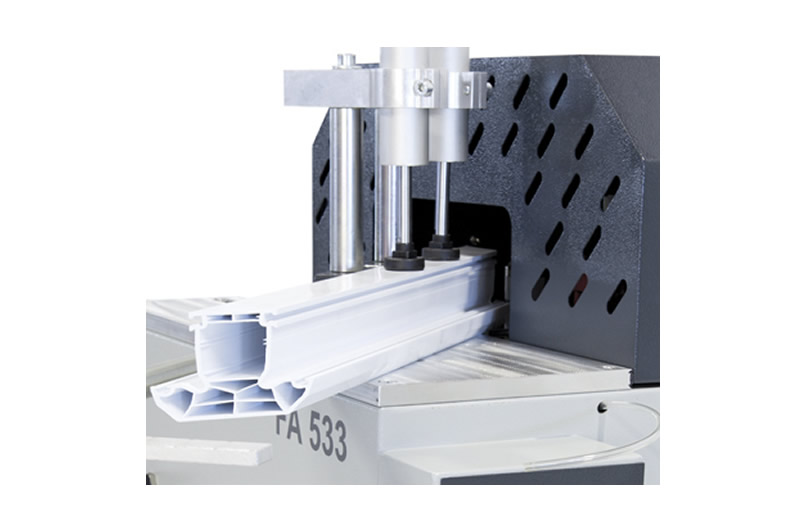

Vertical pneumatic profile clamping system enables optimum work piece fixing.
Positioning of the tools with pneumatic feed cylinder.
Without changing the cutter set, two different series of transom profiles can be processed.
OPTIONAL
Power supply: 400 V, 3ph, 50-60 Hz
Power output: 1,1 kW
Max. cutter diameter: 160 mm.
Spindle speed: 2,800 r.p.m.
Max. routing height: 90 mm.
Max. routing depth: 30 mm.
Max. profile width: 120 mm.
Max. profile height: 90 mm.
Air pressure: 6-8 bar
Air consumption: 20 l/min. (70 l/min. cooling system)
Machine Height: 1,220 mm
Machine Length: 960 mm
Machine Width: 820 mm
Machine Weight: 95 kg
