NR 241

All sawing, routing, drilling, reinforcement steel screwing, marking and end milling operations on PVC profiles are gathered in one machine controlled by computer.

Stacking of 10 profiles (max. 6,5 m length).

Manual barcode labeling system integrated with single-lines.

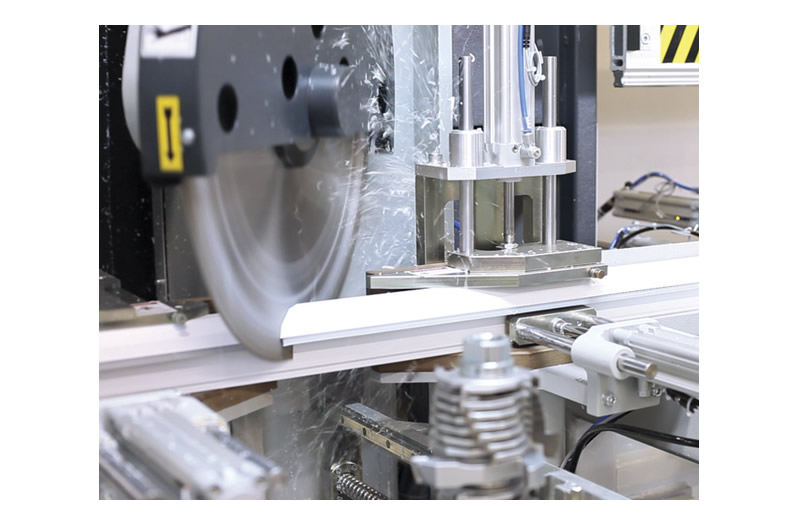

Servo controlled automatic swing of the saw to all angles between 30° and 150° with 0.1° accuracy.

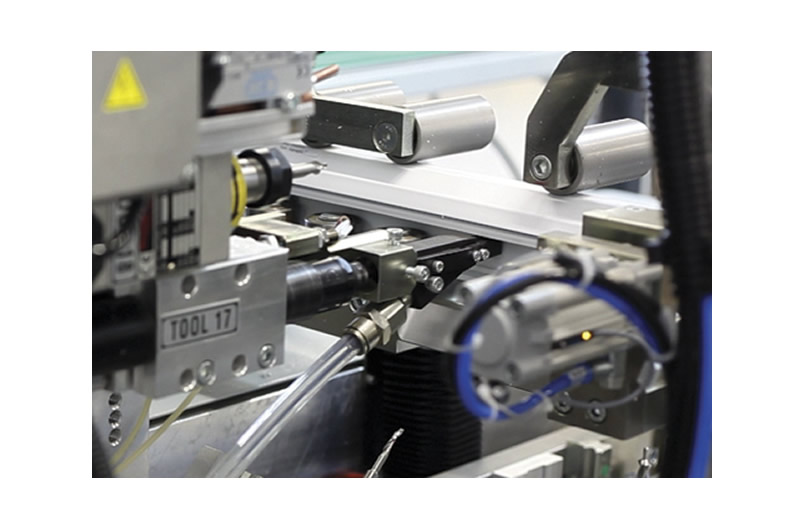

Drain slot routing, drilling and routing at variable angles.

Automatic screwing of reinforcement steels.

Drilling of fixation, triple handle and hinge holes together with the reinforcement steel.

Automatic conveyor belt system to transport scrap profiles to waste container.

Waste profiles longer than 1,000 mm. can be re-processed.

17” touchscreen enables easy access and control.

High performance Workstation PC with Intel® Core™ i5 3,1 Ghz microprocessor.

All error messages can be monitored from the screen by the software developed by New Saray Machinery Software Department.

By online connection to the entire system, remote detection of malfunctions and maintenance is available.

Data transfer is available via network connection or USB interface.

Full integration with various window and door production software.

OPTIONAL

• End milling of transom profiles with two blade sets for two different profile cross sections.
