SC 223

All sawing, routing, drilling, reinforcement steel screwing, marking operations on PVC profiles are gathered in one machine controlled by computer.

Stacking of 10 profiles (max. 7,0 m length).

Manual barcode labeling system integrated with single-lines.

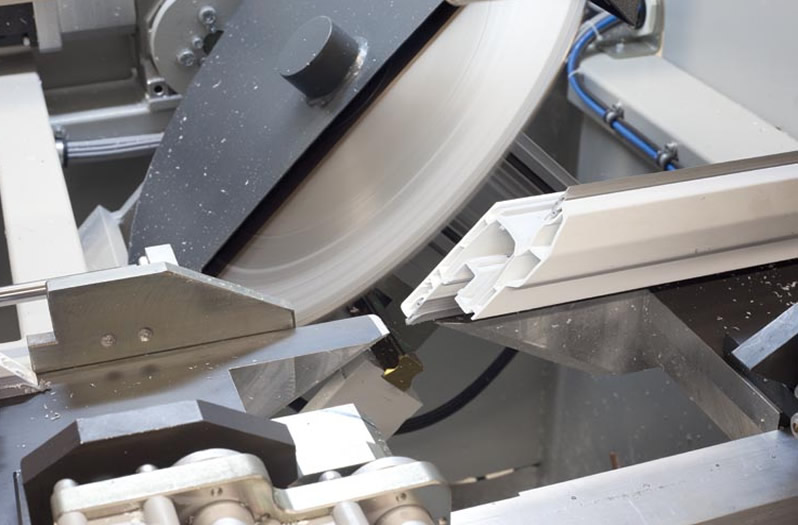

Servo controlled automatic swing of the saw to all angles between 30° and 150° with 0.1° accuracy.

2 spindle motors with 8-axis movement, work on all surfaces of the profile simultaneously.

Drain slot routing, drilling and routing at variable angles.

Automatic screwing of reinforcement steels.

Triple handle drilling with reinforcement steel.

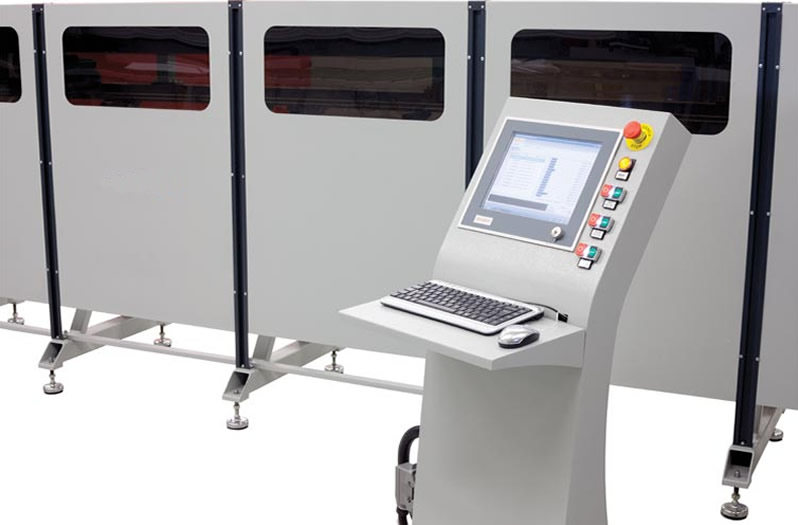

15” touchscreen enables easy control of the machine.

High performance industrial PC with Windows XP Embedded operating works needles of fan between 0°C – 55°C.

Full integration with various window and door production software.

Safe production by means of 3D crash and fault control system developed by New Saray Machinery Software Department.

Easy production control with the 2nd screen on the transfer station.

All error messages can be monitored from the screen by the software developed by New Saray Machinery Software Department.

By online connection to the entire system, remote detection of malfunctions and maintenance is available.- Dust and chip extraction system.
