 Ta 133

Get offer

 Get offer

For Aluminum and PVC profiles cutting.

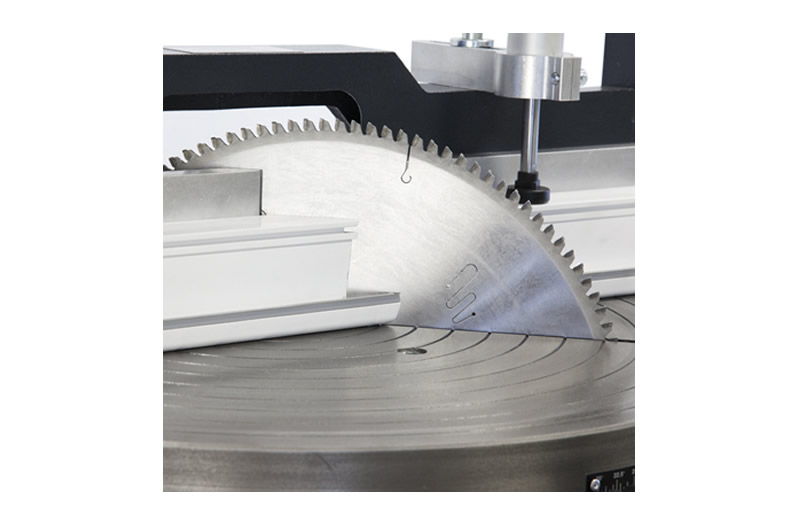

Pneumatic sawing feed from below with 420 mm. saw blade diameter.

The saw blade feed speed can be adjusted.- Wide angle range from 22,5° to 112,5° with special location points at 45°, 90° and 135°.

Vertical pneumatic clamps ensure optimum profile fixing.

OPTIONAL

  • Cooling system for aluminum profiles.
  • Left and right conveyor system.
  • Manuel measuring system conveyor 3,0 m. – Right (TK 061)
  • Manuel measuring system conveyor 3,0 m. – Left (TK 062)

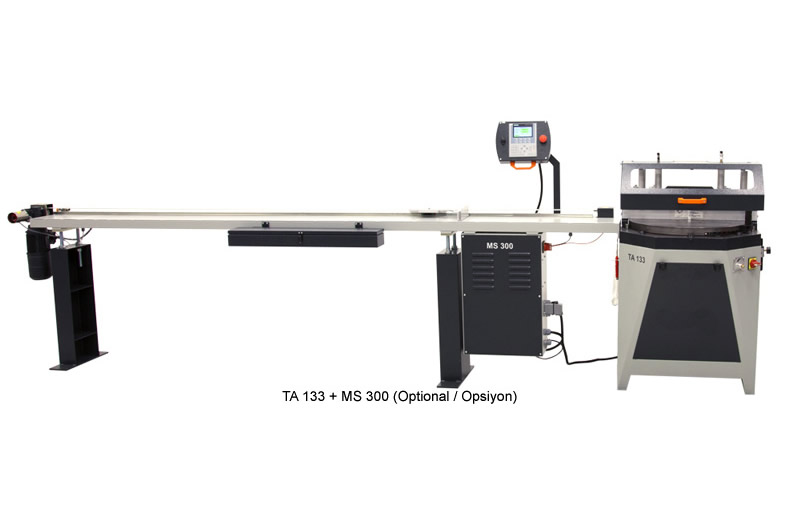

  • Automatic Digital Length Measuring System (MS 300)*

* Can be produced for left or right usage.


    Power supply: 400 V, 3ph, 50-60 Hz

    Power output: 2.2 kW

    Spindle speed: 2,800 r.p.m.

    Air pressure: 6-8 bar

    Air consumption: 60 l/min. (100 lt/min. cooling system)

    Machine height: 1,330 mm

    Machine length: 750 mm

    Machine width: 830 mm (+130 mm. cooling system)

    Machine weight: 225 kg
