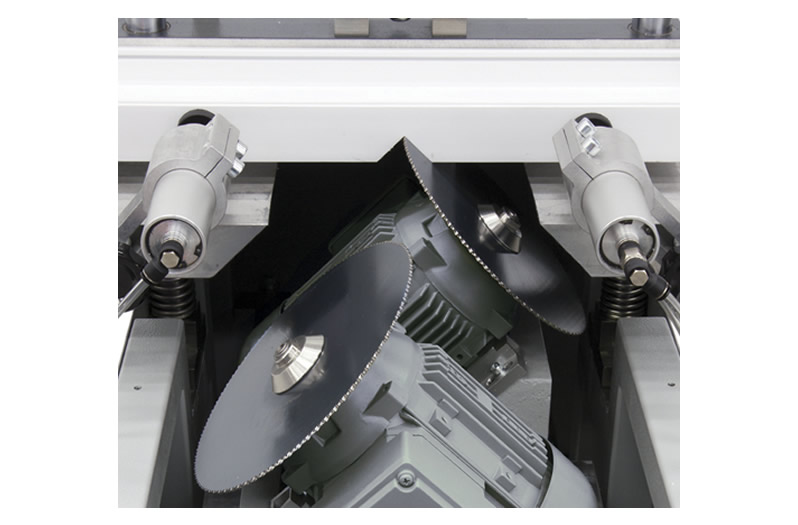

Two 45° angled saw blades with 200 mm. diameter, V-cuts PVC profiles for V-welding.
The cutting depth can be set easily.
The adjustable saw blade feed enable fast and precise cutting with rapid return.
Horizontal pneumatic clamps are positioned opposite of the movement direction to ensure optimum profile fixing.
Power supply: 400 V, 3ph, 50-60 Hz
Total power output: 1,5 kW (0.75 kW x 2)
Spindle speed: 2,800 r.p.m.
Profil genişliği ve yüksekliği çıkartıldı.
Air pressure: 6-8 bar
Air consumption: 60 l/min.
Machine height: 1,200 mm
Machine length: 500 mm (+2,000 mm. left, + 2,000 mm. right conveyor)
Machine width: 1,200 mm
Machine weight: 190 kg
