Ta 144

CNC Control System,

Saw of Servo Motors is giving possibility to adjusted of PVC profiles cutting height and cutting speed at different lengths,

According to the profile weight with Servo Motors profile system possibility to adjusting feed speed,

Maximum Speed and ultimate accuracy with Servo motor system,

+/- 0.1 mm cutting accuracy,

Maximum surface quality and dimensional accuracy with “Clean cut” system,

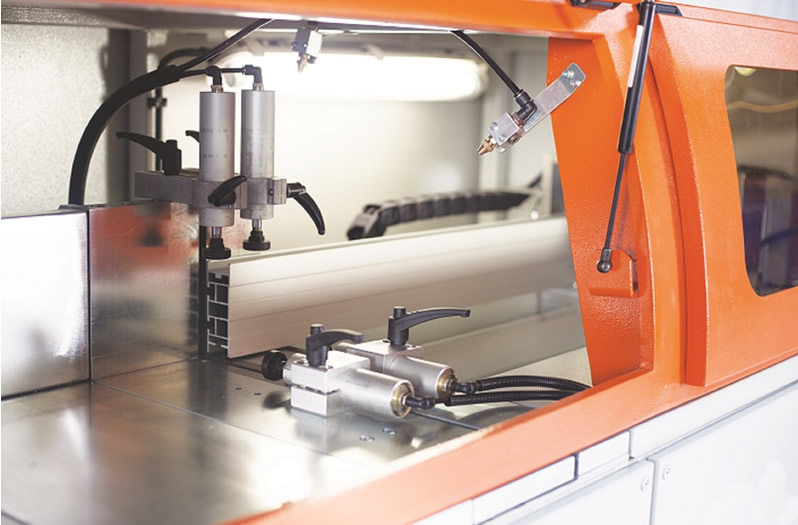

Horizontal and vertical pneumatic profile clamping system,

Automatic spray cooling,

3 mt roller conveyors,

Ability to automatic slicing,

Ability to create a cutting list,

Cutting list Data transfer is available via network connection or USB interface,

Safety switch protection cover system,

Touchscreen ‘ Plc ‘

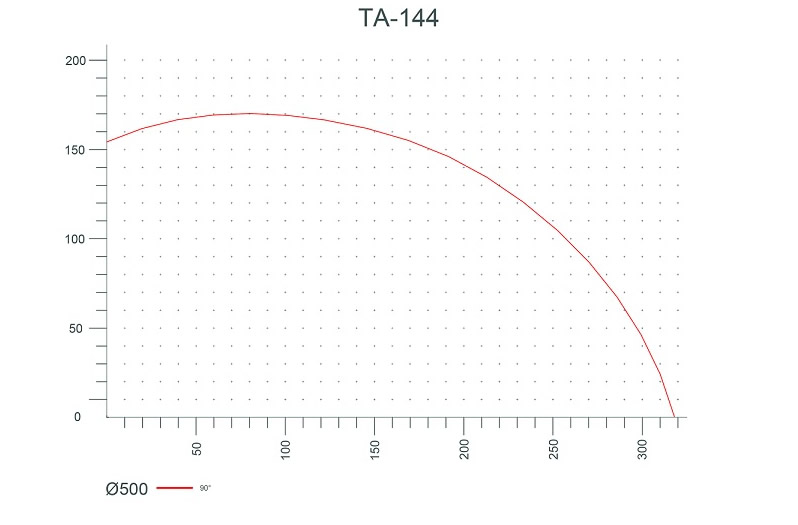

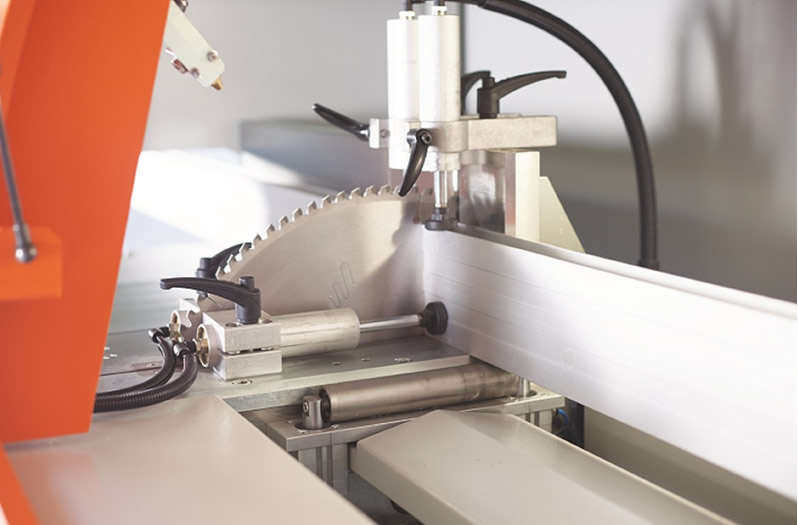

500 mm saw blade diameter,

Power Output 5,5 Kw Spindle Speed 3000 r.p.m.
