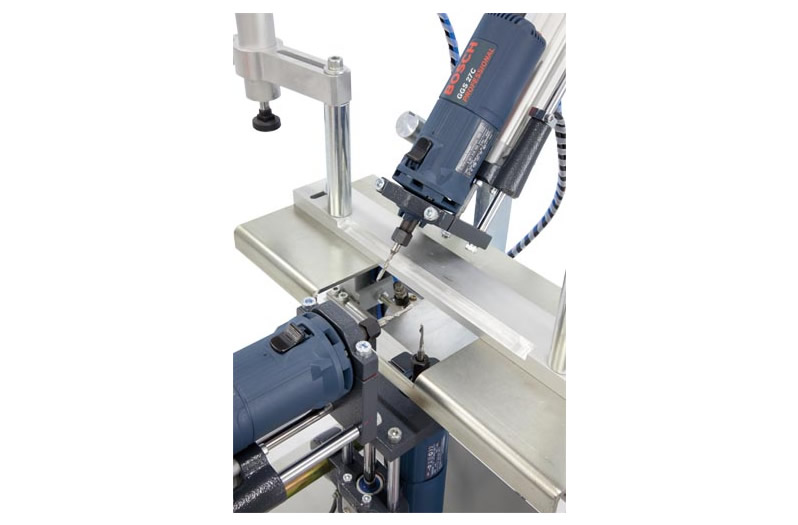

Mills water drain slots and opens ventilation holes on PVC profiles at various angles.
Three high speed motors mills drain slots on different surfaces of the profile.
Motors can work individually.
Easy to adjust according to different profile cross sections.
Full automatic operation.
Pneumatic profile clamping.
Power supply: 230 V, 50-60 Hz
Total power output: 2 kW
Power output of each motor: 0.66 kW
Router spindle speed: 12,000 r.p.m.
Routing length max: 50 mm.
Stroke: 25 mm.
Max. profile section dimensions: 90 mm x 90 mm.
Air pressure: 6-8 bar
Air consumption: 18 l/min.
Machine height: 1,220 mm
Machine length: 750 mm
Machine width: 600 mm
Machine weight: 95 kg
