Routing of door handle holes, lock cylinders and drain slots on PVC profiles.
Automatic espagnolette and lock canal milling.
Precise routing with minimal effort and simple operation.
1:1 ratio transfer of the pattern from a template onto the profile.

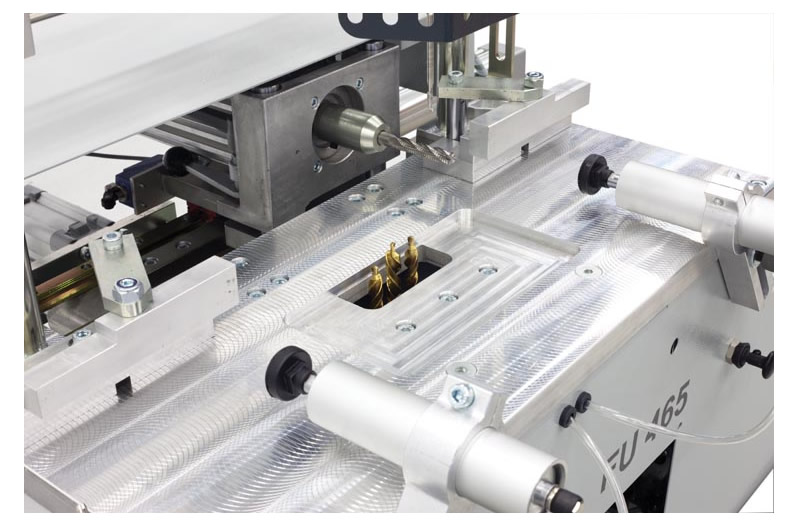

Automatic triple spindle drilling of PVC sash profiles with reinforcement steel.
Frequency controlled (inverter) high speed motor.
Manual two stepped copy finger for 5 mm. and 8 mm. cutter diameters.
Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
Pneumatic profile clamping.
Power supply: 400 V, 3ph, 50-60 Hz
Total power output: 3.5 kW
Power output router: 0.75 kW
Power output triple drill: 1.1 kW
Power output milling: 1.5 kW
Router spindle speed: 12,000 r.p.m.
Drill spindle speed: 930 r.p.m.
Milling spindle speed: 12,000 r.p.m.
Routing capacity: 250 x 100 mm.
Milling length: 250 mm.
Stroke: 100 mm.
Max. profile section dimensions: 110 mm x 100 mm.
Air pressure: 6-8 bar
Air consumption: 50 l/min.
Machine height: 1650 mm
Machine length: 1000 mm
Machine width: 840 mm (+1,000 mm. conveyor)
Machine weight: 140 kg
