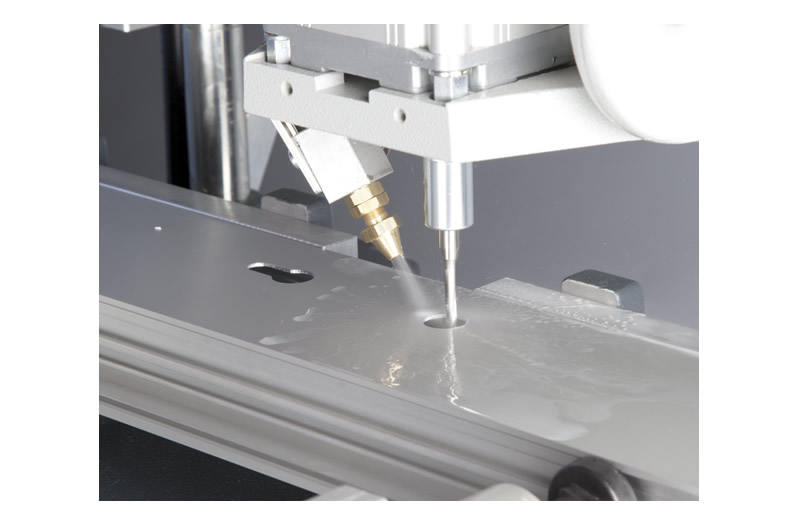

Routing of door handle holes, lock cylinders and drain slots on PVC and aluminum profiles.
Precise routing with minimal effort and simple operation.
1:1 ratio transfer of the pattern from a template onto the profile.
Frequency controlled (inverter) high speed motor.
Manual two stepped copy finger for 5 mm. and 8 mm. cutter diameters
Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
Pneumatic profile clamping.
OPTIONAL
Power supply: 230 V, 50-60 Hz
Power output: 0.75 kW
Spindle speed: 12,000 r.p.m.
Routing capacity: 250 x 100 mm.
Stroke: 100 mm.
Max. profile section dimensions: 110 mm x 100 mm.
Air pressure 6-8 bar
Air consumption: 5 l/min.
Machine height 1650 mm
Machine length 450 mm
Machine width 620 mm (+1,000 mm. right and left profile support conveyor)
Machine weight 70 kg
