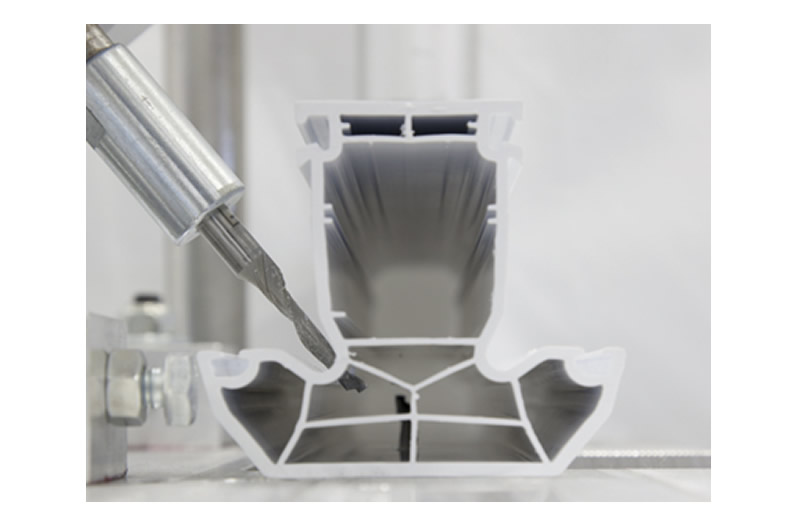

Mills water drain slots and opens ventilation holes on PVC profiles at various angles.
Three frequency controlled (inverter) high speed motors mills drain slots on different surfaces of the profile.
Motors can work individually. Routing speeds can be adjusted independently.
Easy to adjust according to different profile cross sections.
The upper routing unit automatically positions itself to left or right side of the profile.
Pneumatic profile clamping.
Power supply: 230 V, 50-60 Hz
Total power output: 1,2 kW
Power output of each motor: 0.37 kW
Router spindle speed: 18,000 r.p.m.
Routing length max: 50 mm.
Stroke: 25 mm.
Max. profile section dimensions: 90 mm x 90 mm.
Air pressure: 6-8 bar
Air consumption: 24 l/min.
Machine height: 1,260 mm
Machine length: 800 mm
Machine width: 760 mm
Machine weight: 95 kg
