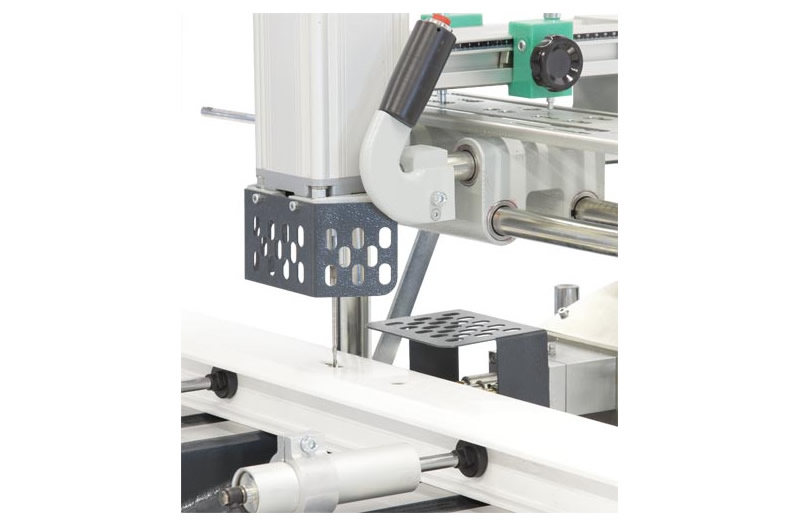

Routing of door handle holes, lock cylinders and drain slots on PVC profiles.
Precise routing with minimal effort and simple operation.
1:1 ratio transfer of the pattern from a template onto the profile.

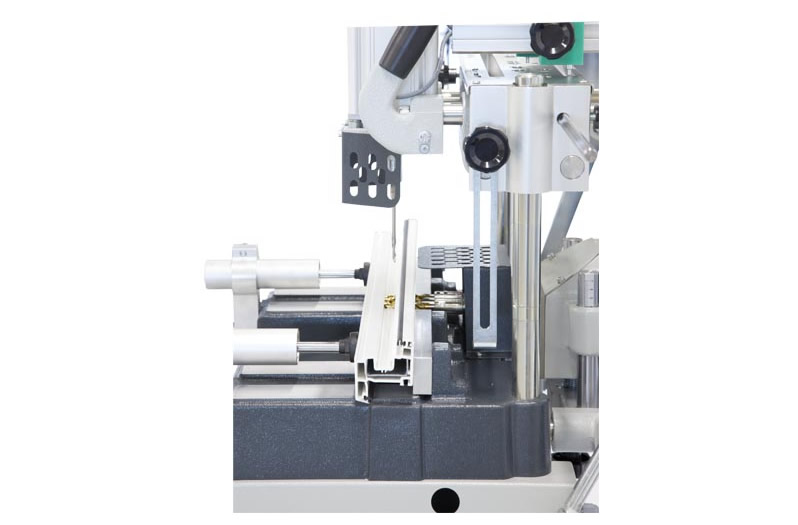

Triple spindle drilling of PVC sash profiles with reinforcement steel by manual feed.
Long lasting specially coated drillers.
Frequency controlled (inverter) high speed motor.
Manual two stepped copy finger for 5 mm. and 8 mm. cutter diameters
Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
Pneumatic profile clamping.
OPTIONAL
Power supply: 230 V, 50-60 Hz
Power output: 0.75 kW
Spindle speed: 12,000 r.p.m.
Routing capacity: 250 x 100 mm.
Stroke: 100 mm.
Max. profile section dimensions: 110 mm x 100 mm.
Air pressure 6-8 bar
Air consumption: 5 l/min.
Machine height 1650 mm
Machine length 450 mm
Machine width 620 mm (+1,000 mm. right and left profile support conveyor)
Machine weight 70 kg
