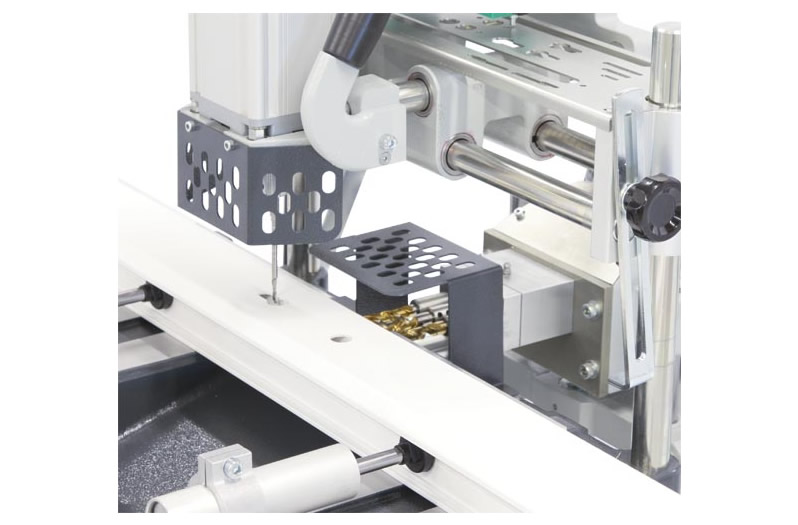

Routing of door handle holes, lock cylinders and drain slots on PVC profiles.
Precise routing with minimal effort and simple operation.
1:1 ratio transfer of the pattern from a template onto the profile.

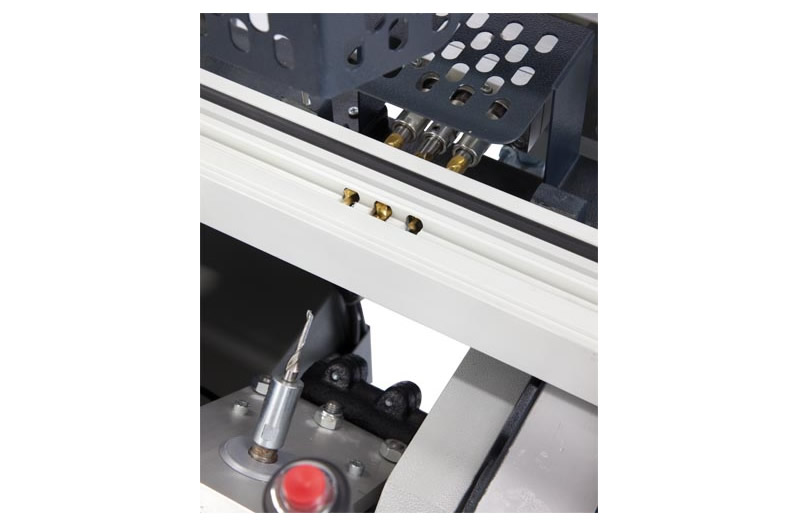

Triple spindle drilling with manual feed for espagnolette holes on PVC sash profiles.
Drain slot milling at varying angles.
Frequency controlled (inverter) high speed motor.
Manual two stepped copy finger for 5 mm. and 8 mm. cutter diameters
Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
Pneumatic profile clamping.
OPTIONAL
Power supply: 400 V, 3ph, 50-60 Hz
Total power output: 2.22 kW
Power output milling: 0.75 kW
Power output triple drill: 1.1 kW
Power output router: 0.37 kW
Router spindle speed: 12,000 r.p.m.
Drill spindle speed: 930 r.p.m.
Routing capacity: 250 x 100 mm.
Stroke: 100 mm.
Max. profile section dimensions: 110 mm x 100 mm.
Air pressure: 6-8 bar
Air consumption: 15 l/min.
Machine height: 1,650 mm
Machine length: 900 mm
Machine width: 630 mm (+1,000 mm. conveyor)
Machine weight: 125 kg
